ICE Clevis type tensioner for the length adjustment
Manufacturer:
ICE Tensioner with clevis connection. For exact length adjustment of the chain strands. Special robust design due to a solid threaded bar. No open thread, safety device to prevent loosening and grease nipples on both sides. Rough shortening with ICE-Multi-Shortening claw. The load and retaining pins are preassembled. Surface: ICE-Pink powder coated
Hint: ICE-Tensioner with clevis connection which are used for lashing, must not being used for lifting.
| Chains mm |
WLL t |
Designation | A mm |
B mm |
T mm |
Weight kg |
Order no. |
| 6 | 1.8 | ICE-CURT-K-6-GAKO Clevis | 400 | 140 | 260 | 1.76 | 7904448 |
| 8 | 3.0 | ICE-CURT-K-8-GAKO Clevis | 520 | 170 | 350 | 3.15 | 7904449 |
| 10 | 5.0 | ICE-CURT-K-10-GAKO Clevis | 532 | 170 | 362 | 3.55 | 7904450 |
| 13 | 8.0 | ICE-CURT-K-13-GAKO Clevis | 830 | 300 | 530 | 6.57 | 7904451 |
| 16 | 12.5 | ICE-CURT-K-16-GAKO Clevis | 962 | 350 | 612 | 12.22 | 7904452 |

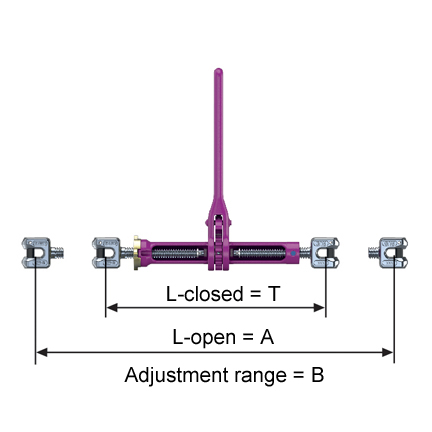

With ratchet
| Chains mm |
WLL t |
Designation | A mm |
B mm |
T mm |
Weight kg |
Order no. |
| 6 | 1.8 | ICE-CURT-6-GAKO Clevis with ratchet | 400 | 140 | 260 | 1.49 | 7903439 |
| 8 | 3.0 | ICE-CURT-K-8-GAKO Clevis with ratchet | 520 | 170 | 350 | 3.90 | 7901125 |
| 10 | 5.0 | ICE-CURT-K-10-GAKO Clevis with ratchet | 532 | 170 | 362 | 4.30 | 7901126 |
| 13 | 8.0 | ICE-CURT-K-13-GAKO Clevis with ratchet | 830 | 300 | 530 | 7.63 | 7902624 |
| 16 | 12.5 | ICE-CURT-K-16-GAKO Clevis with ratchet | 962 | 350 | 612 | 13.03 | 7902625 |
